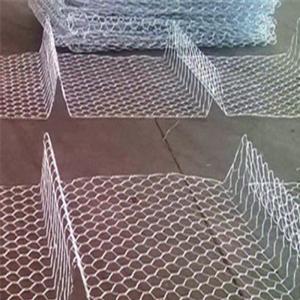

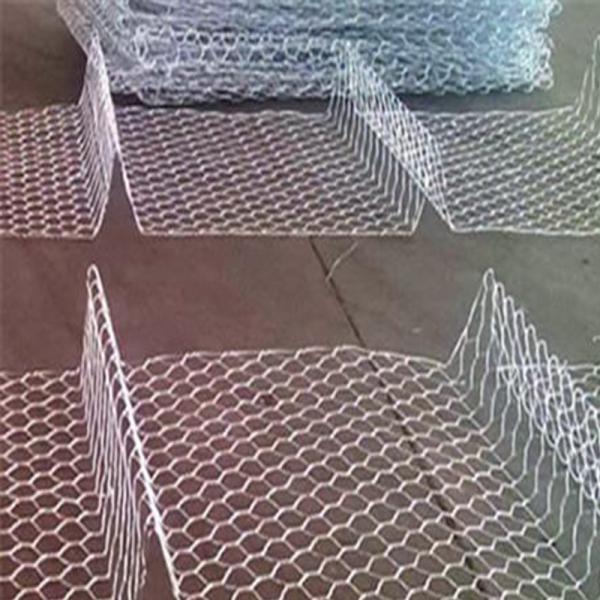

PVC coated gabion baskets 10x12cm/2x1x0.5m gabion basket/Peru gabion mattress 3x2x0.17m for sale
1. PVC Coated Gabion material:
(1) Galvanized steel wire: diameter 2.0MM-4.0MM, tensile strength >350Mpa, hot dipped
galvanized zinc coating:35-50g/m2 high zinc:240g / m2.
(2) Zinc 5% Aluminum - wire diameter 1.0MM-3.0MM, tensile strength >350Mpa.
2.PVC Coated Gabion Process:
wire drawing---galvanized--- galvanized after weaving or galvanized before weaving.
3. PVC Coated Gabion Box sizes:
2m x 1m x 1m,
3m x 1m x 1m,
4m x 1m x 1m,
2m x 1m x 0.5m,
4m x 1m x 0.5m,and Customer orders available.
Specification
| Mesh Size (mm) |
Mesh Wire Diameter(mm) |
PVC Coated Wire Diameter(mm) |
| 60*80 |
2.0-2.8 |
2.0/3.0-2.5/3.5 |
| 80*100 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
| 80*120 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
| 100*120 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
| 100*150 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
PVC Coated Gabion Characteristic:
(1) Economic. Just fill the stone into the gabions and seal it.
(2) Simple installation. No special technology needed.
(3) Weather proof under natural destroy, corrosion resistant.
(4) No collapse even under big scope of deforming.
(5) Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural
environment.
(6) Good permeation can prevent the damage by hydrostatic.
(7) Less transport freight. It can be folded together for transport and further installation.
PVC Coated Gabion Applications:
1)Control and guide of water or flood
2)Flood bank or guiding bank
3)Preventing of rock breaking
4)Water and soil protection
5)Bridge protection
6)Strengthening structure of soil
7)Protection engineering of seaside area.
